ESSO Onshore/Offshore Drilling and Production Platform - EPC

Fluor, as the managing contractor, provided design, engineering, procurement and construction management to ESSO Exploration and Production Côte d'Ivoire, Inc. (ESSO) to construct the first offshore oil and gas drilling and production facilities off the Ivory Coast. In addition to the platform scope of work, Fluor was responsible for an offshore pipeline, an onshore pipeline and related onshore facilities.

Through this project, Fluor helped the Ivory Coast become an oil producer for the first time in its history.

Offshore EPCM of Production Module and Tower

Client's Challenge

ESSO needed a proven EPC contractor to help the Republic of Ivory Coast become an oil producer. The new processing facilities will handle 10,000 barrels per day (B/D) of oil and five million cubic feet per day (MMSCFD) of natural gas. Production will be pipelined to an existing refinery near Abidjan, Ivory Coast.

The offshore project was eight miles offshore at a depth of approximately 200 feet and often experienced 34-foot storm waves.

Fluor's Solution

Fluor, as the managing contractor, was responsible for the design, engineering, procurement and construction management of the offshore drilling and production platform, as well as the pipeline and onshore reseparation and storage facilities. The entire Abidjan facility handles 15,000 B/D of oil and 15 MMSCFD of gas.

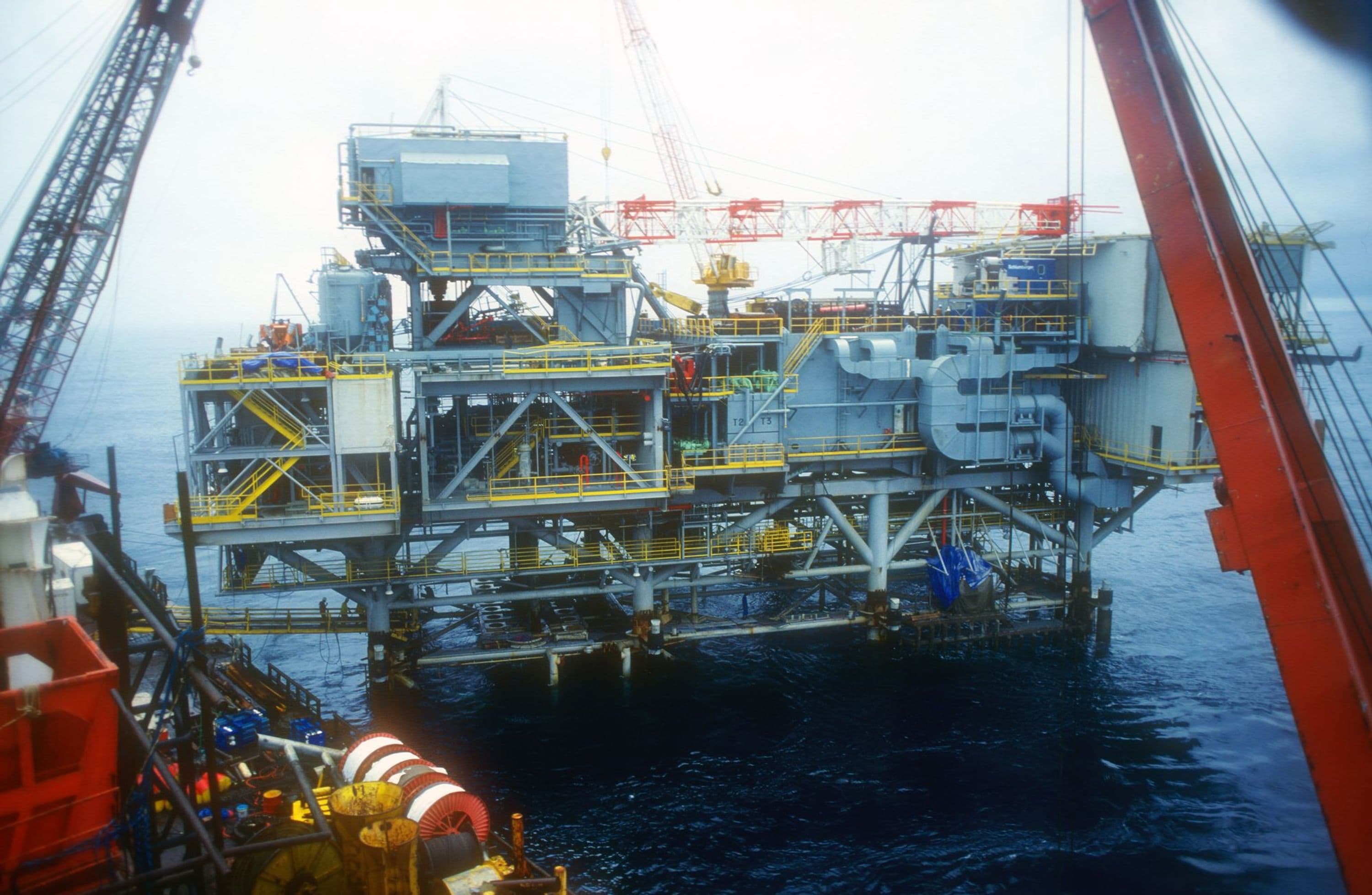

The offshore drilling and production platform includes an eight-legged steel jacket structure supporting three production modules, three drilling equipment cap bridges, and drilling rig plus living quarters and helideck. Oil and gas are separated on the platform before transfer to shore through a 10-inch diameter coated offshore pipeline and 10-inch buried onshore pipeline.

Onshore, Fluor was responsible for the facilities where the oil and gas are received. The oil is processed to reduce vapor pressure and stored for pumping to the adjacent S.I.R. refinery.

Upon completion of the onshore and offshore facilities, Fluor began work on the second phase of the project. During this phase, Fluor provided three additional modules for gas lift, waterflood and power generation for the Belier Field platform.

---insert_gallery---

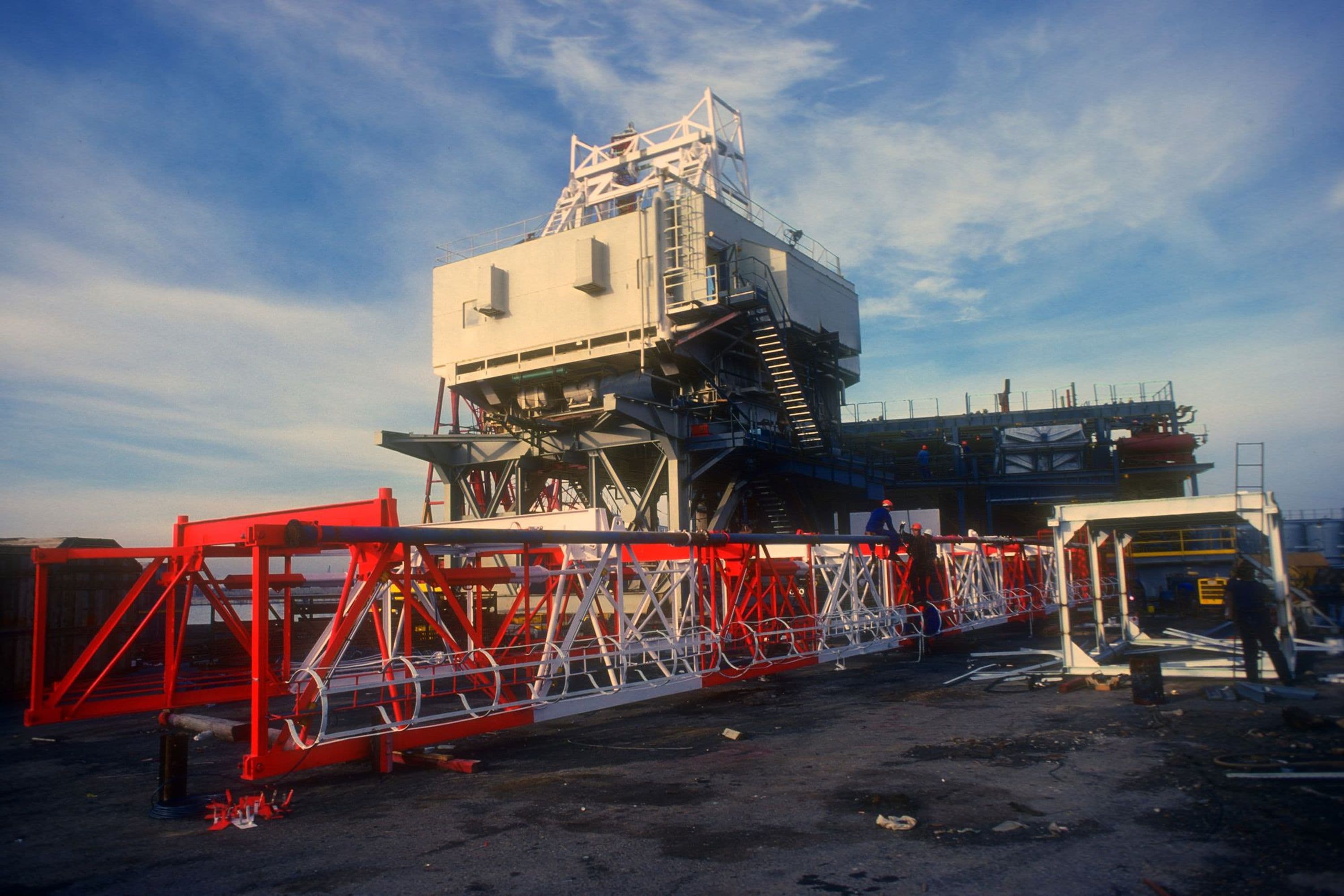

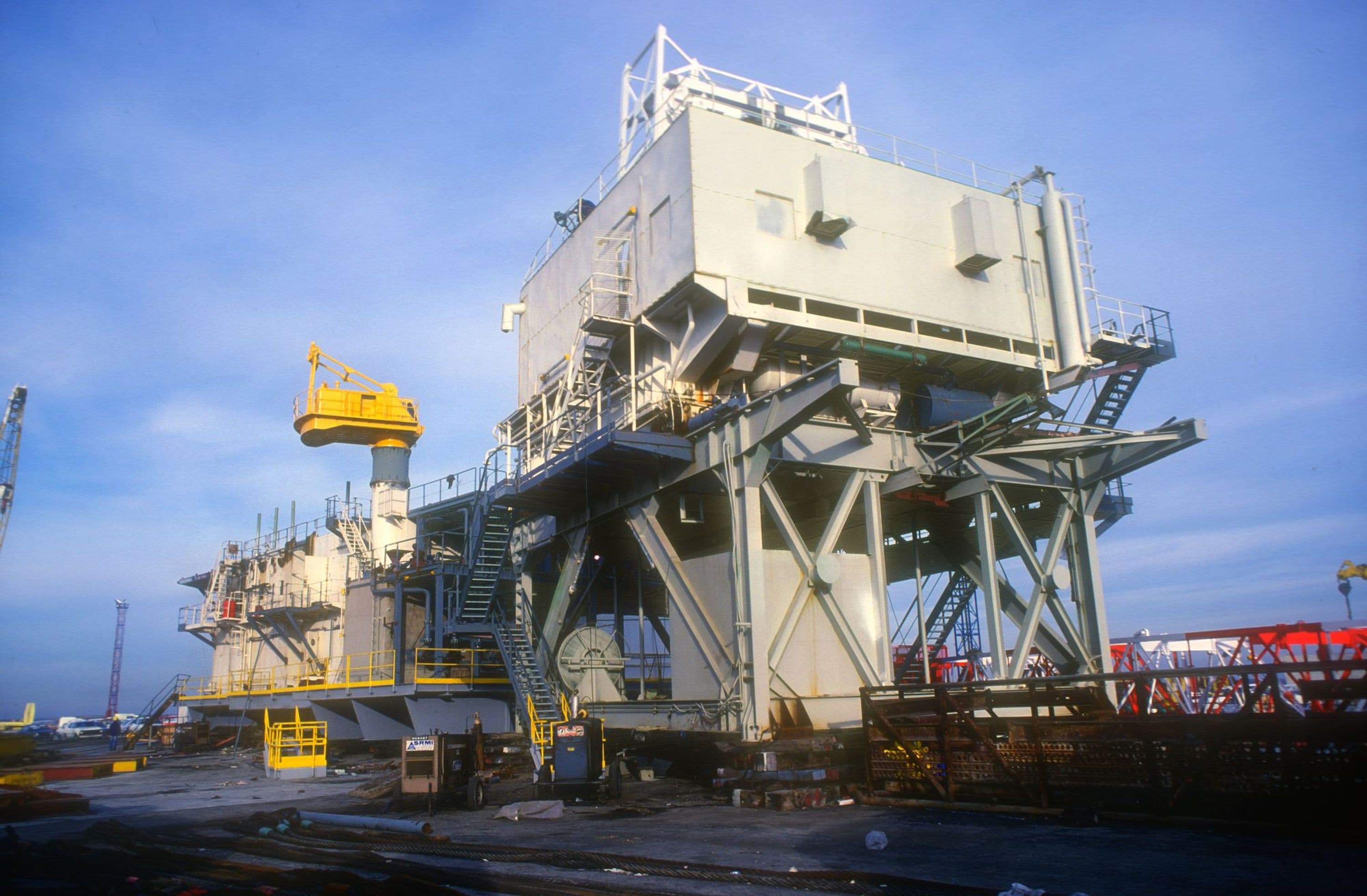

Onshore Construction Management of Offshore Production Platform

Conclusion

Fluor's expertise in offshore and onshore oil production helped the Republic Ivory Coast achieve its goal of producing oil for the first time in the country's history.

After the facilities were completed, Fluor completed the second phase of the project by providing additional modules for the Belier Field platform.
