Compania Minera El Indio Gold, Silver and Copper Processing Facilities

Historic Project: Groundbreaking Work From Earlier in Fluor’s History

Client: Compania Minera El Indio

Location: El Indio (Fourth Region), Chile

Business Segment: Urban Solutions

Industry: Mining & Metals

Map showing the location of Compania Minera El Indio Gold, Silver and Copper Processing Facilities

Executive Summary

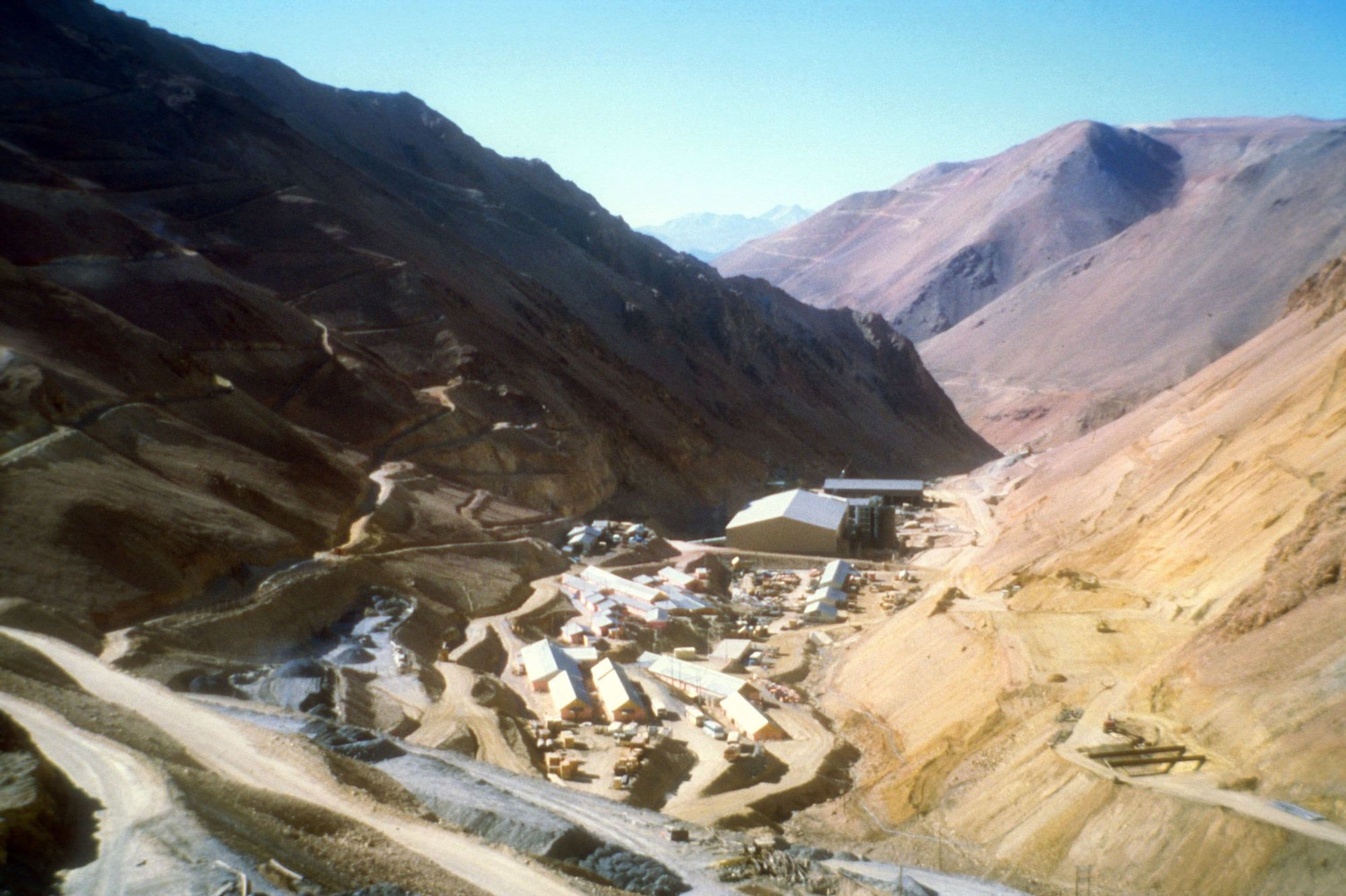

Fluor provided engineering, procurement, construction management and start-up services to Compañía Minera El Indio for gold, silver and copper processing facilities at a site 14,000 feet up in the Chilean Andes.

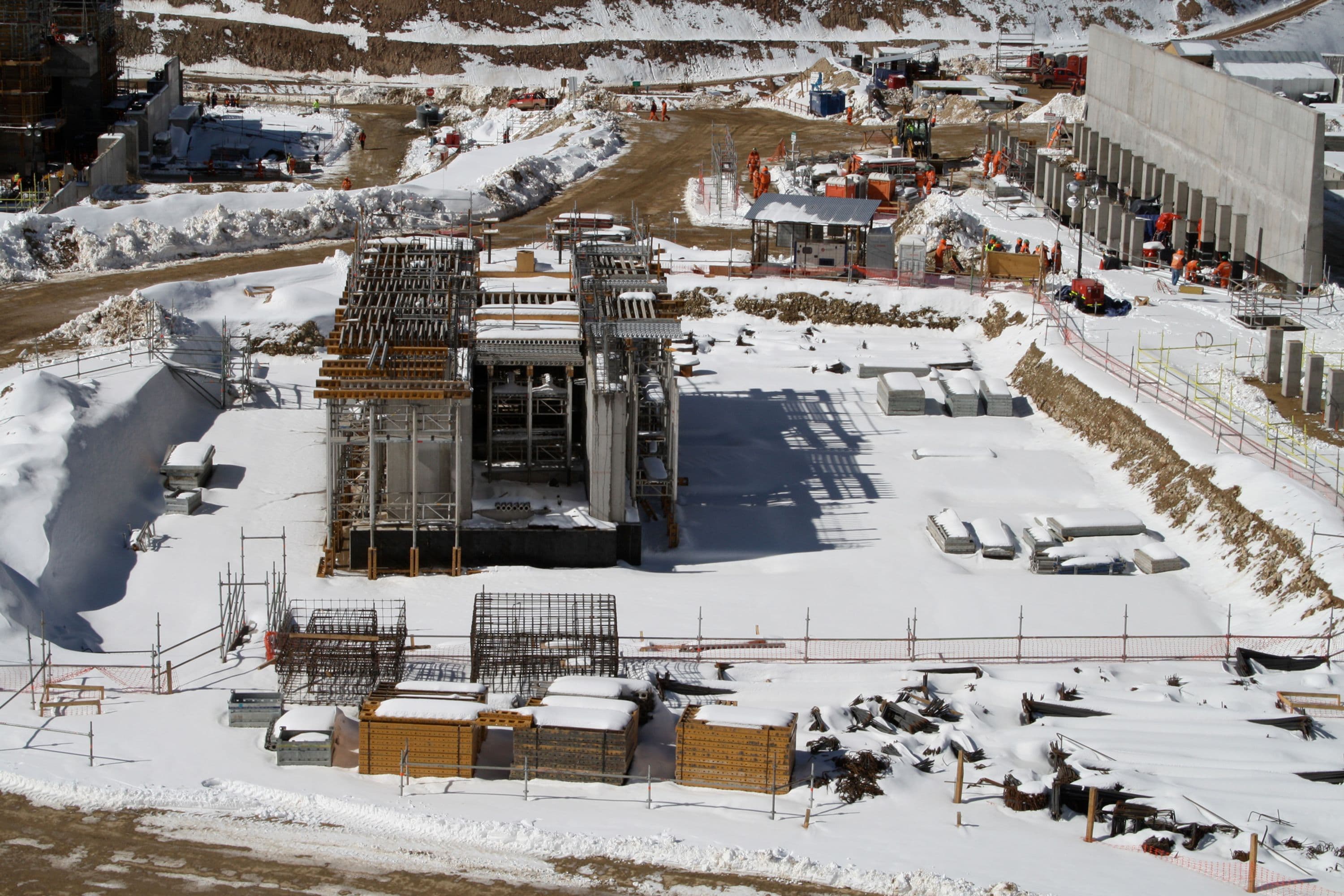

We implemented innovative techniques to complete this project in the remote mountains of Chile. Due to the constant cold, concrete was heated for proper curing. Grout was used to seal large pipe covered with tents to prevent the dry winds from evaporating moisture from the mixture. We also used pack mules to carry material to transmission tower sites located in isolated areas.

Despite the challenging conditions, the Fluor team successfully completed the copper, silver and gold mine project with an experienced site team and dedicated Chilean construction crews.

Client's Challenge

Compañía Minera El Indio wanted to build mine-processing facilities in an isolated location 14,000 feet up in the Chilean Andes. The project site's severe climatic conditions presented several challenges, including lack of infrastructure and the logistics of getting equipment and workers to the site.

The facilities would process 437,500 metric TPY of copper-, gold- and silver-bearing ore and would include installation of roasting facilities to upgrade the concentrates and carbon-in-pulp/electrowinning capabilities for gold and silver bullion recovery.

Fluor's Solution

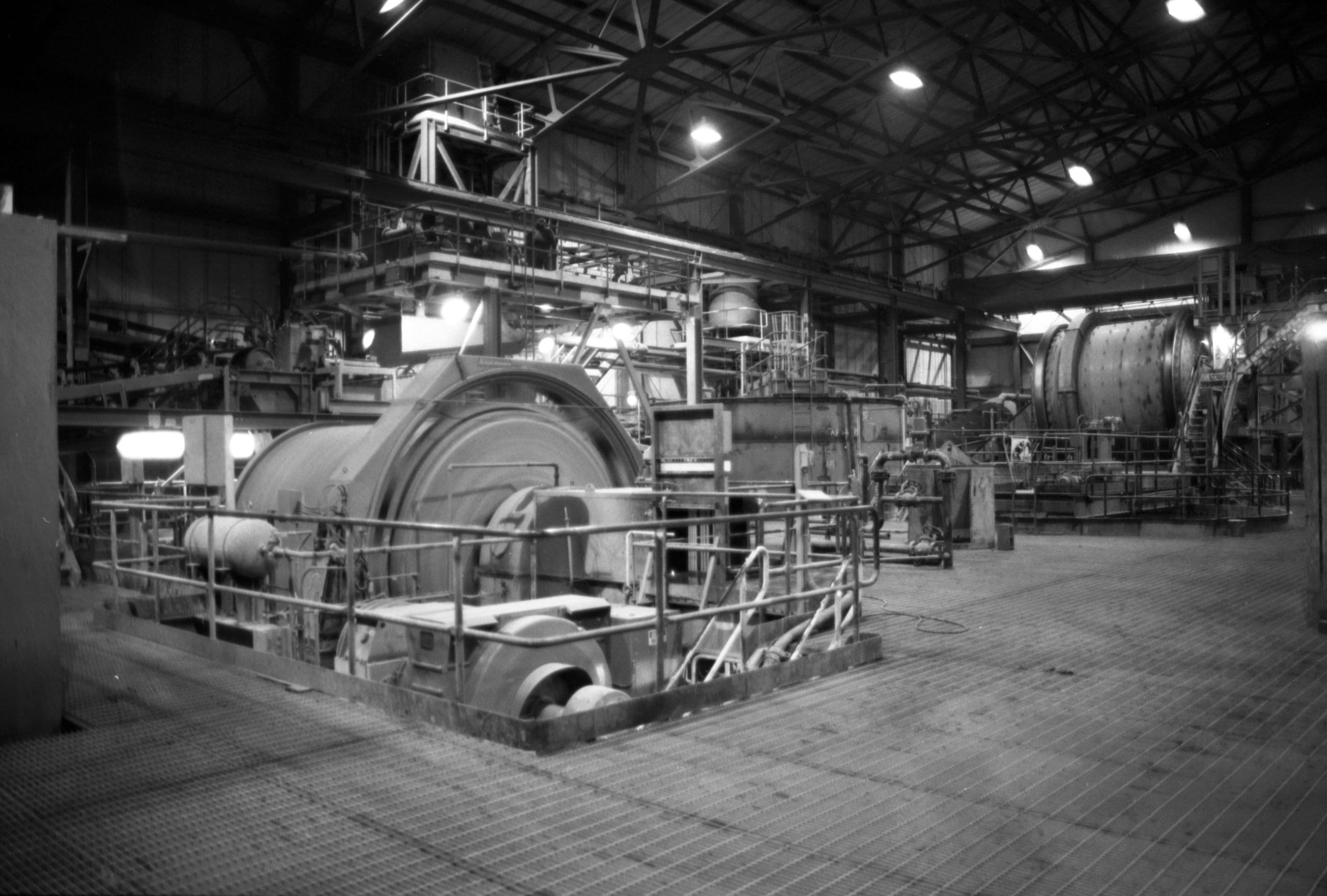

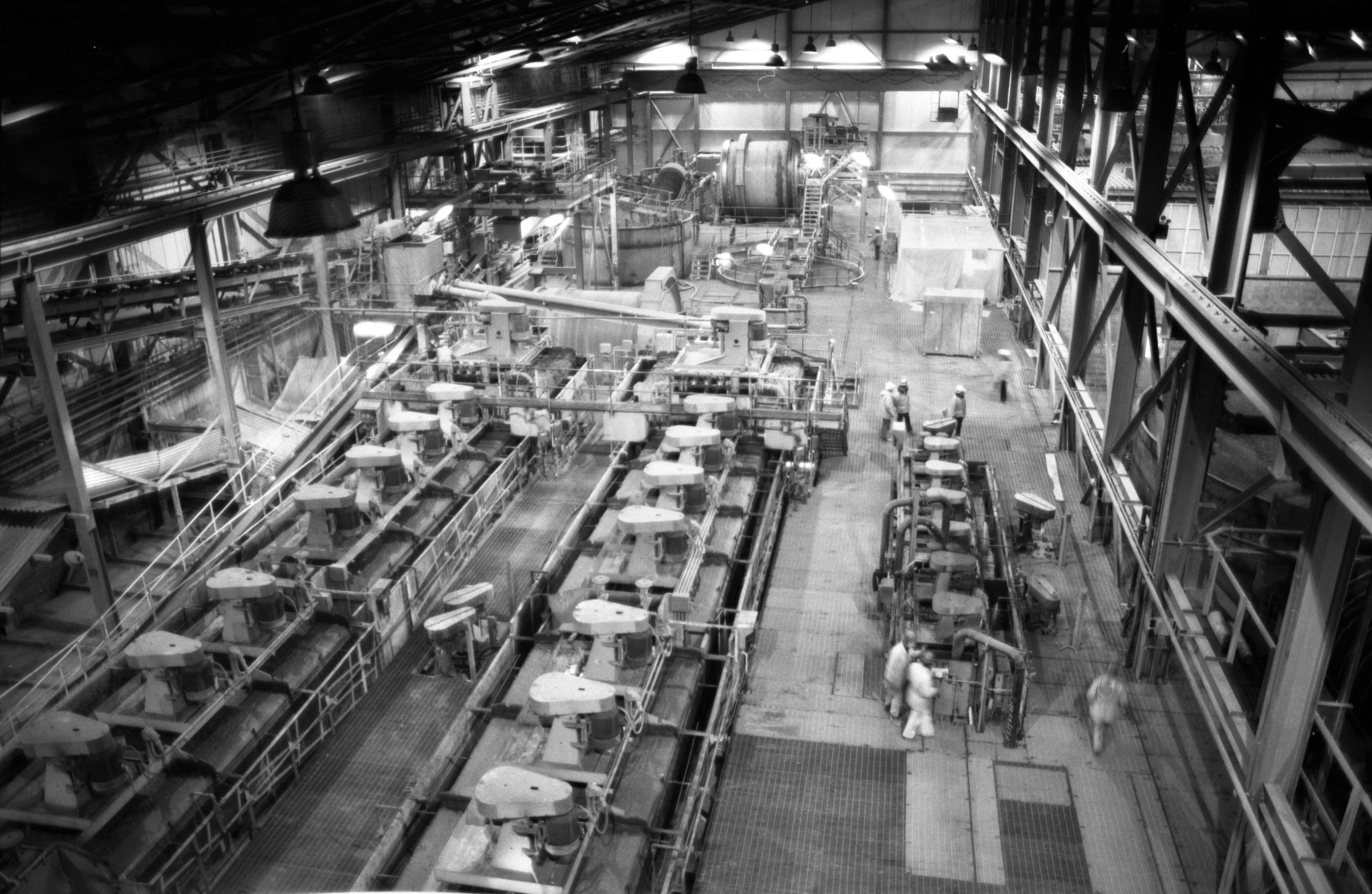

Fluor provided engineering, procurement, construction management and start-up services on this complex and challenging project in the remote mountains of Chile. In addition to the process plant building, the project included a coarse ore stockpile, crushing, washing, leaching and storage for 5,500 tons; grinding, flotation, filtration, drying and lime preparation.

Other project components included roasting, fume handling and product packing; cyanidation and carbon absorption and desorption; and reagent preparation.

We provided ancillary facilities including service buildings for administration, repair and maintenance shops, consumable storage and a change house. Water supplies, fire protection systems, water reservoirs, a tailings dame and power transmission and distribution systems were also provided.

Additional work included site preparation, roads, sewers, drainage system, as well as fencing, guardhouses and other security facilities.

Conclusion

Fluor overcame severe environmental challenges to complete the El Indio gold and copper mine high in the Chilean Andes.

We employed a site team with experience in constructing mines in every conceivable climate and location around the world. We also used experienced construction workers from Chile to complete the mining facilities.
