Santa Fe Mining Conveying and Stacking System
Client: Santa Fe Mining, Inc.
Location: Rabbit Creek, NV, U.S.
Business Segment: Urban Solutions
Industry: Mining & Metals

Executive Summary
Fluor provided detailed design, equipment procurement, contract specifications, construction assistance and commissioning assistance for Rabbit Creek's new high-speed conveying run-of-mine materials. Included in the gold mine development were mill and heap leach operations.
The mill had a capacity of 1,500 tons per day, while the heap leach operation would peak at 3.5 million tons per year. The new 6,500-tons-per-hour run-of-mine high-speed conveying and stacking system would remove about 150 million tons of overburden and waste from the pit and help Santa Fe Pacific Mining economically access their ore body.
Client's Challenge
Santa Fe Mining contracted Fluor to work closely with worked with their Rabbit Creek staff to overcome the challenges of conveying run-of-mine material on high-speed belts.
Fluor's Solution

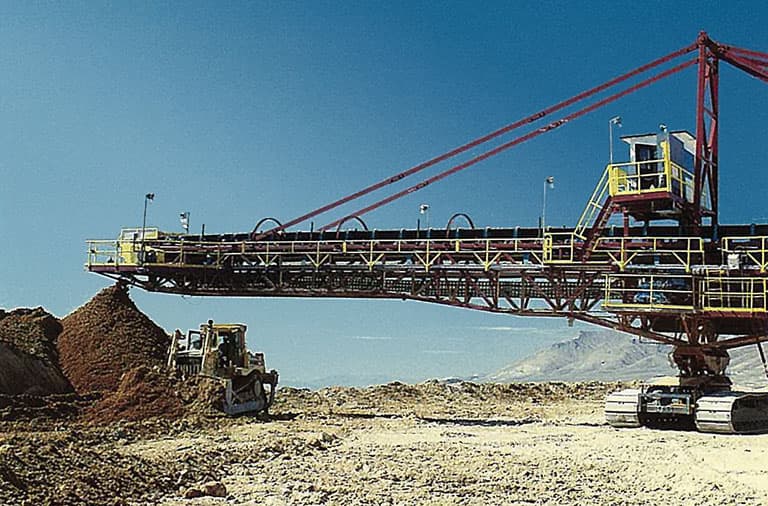

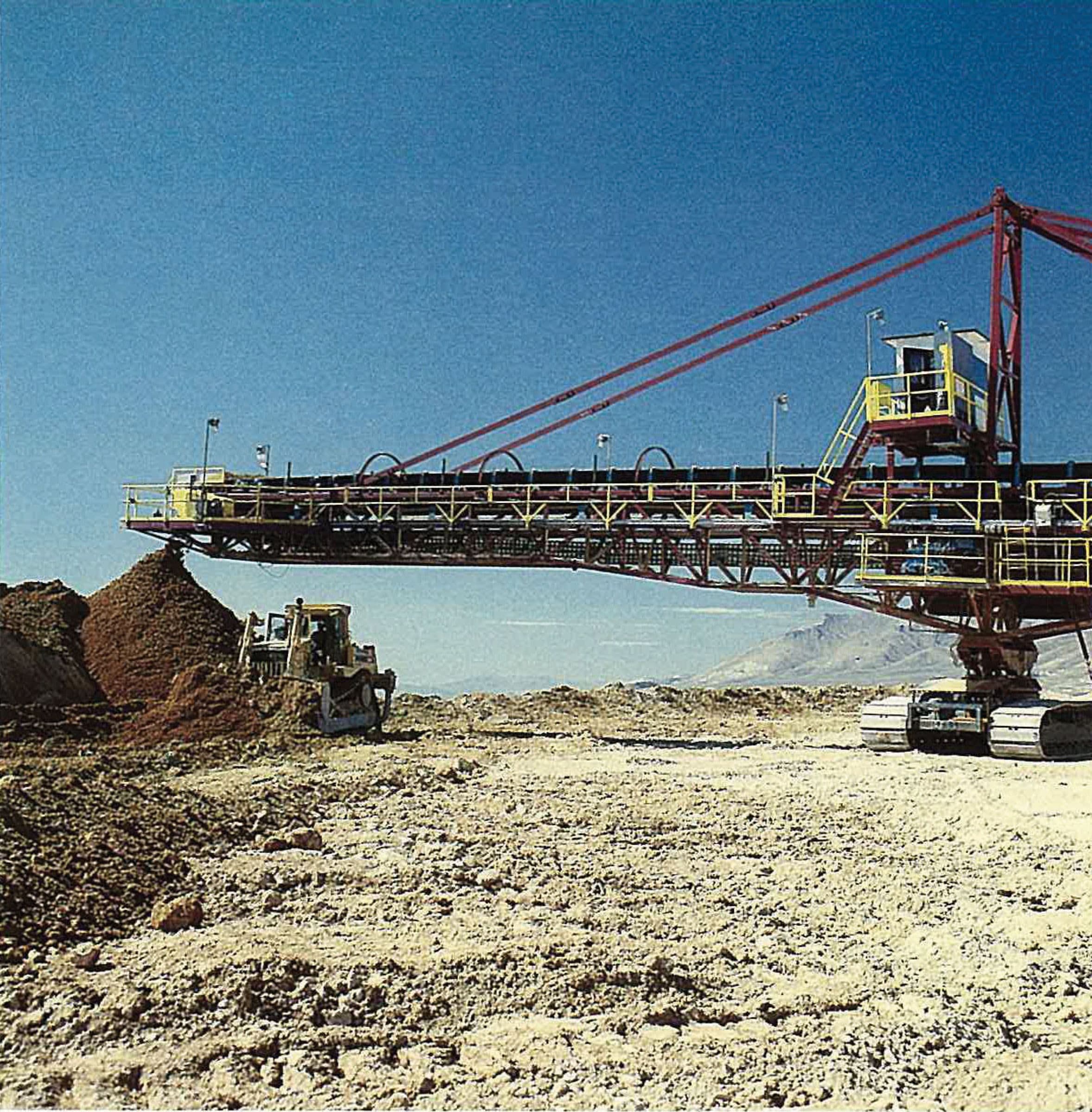

The system included two truck dump stations, five 60-inch wide conveyors in series and a 72-inch x 200-foot track-mounted slewing stacker. Mine trucks discharged the waste into one of the two dump stations located within the open pit. Three conveyors in series elevated the material 600 feet over a horizontal distance of 5,900 feet to a 1,200-foot long tripper conveyor mounted on a 200-foot-high berm.
The tripper conveyor fed a second, 1,500-foot long tripper conveyor installed at right angles to the first. This conveyor fed the stacker. The stacker feed conveyor was moveable which enabled the stacker to extend the berm. This allowed waste to be deposited over a wider area, measuring 1,500 feet by 4,000 feet.
Conclusion
A 6,500-tons-per-hour, run-of-mine conveying and stacking system for overburden and waste was developed by Fluor to help Santa Fe Pacific Mining economically access their ore body. The success of this project proved the viability of conveying the overburden removal at high speed. We were retained at Rabbit Creek for follow-on work for a new, larger system to extend the pit.
